Customizable 3-5 Layers Multi-Layer Co-Extruded Plastic Sausage Casing Extrusion Line

Availability:

Quantity:



Inquire Add to Basket

Product Description

Our 3-5 Layers Plastic Sausage Casing Extruder is designed for efficient and reliable sausage casing production. This extruder is capable of processing various plastic materials to create casings with 3 to 5 layers, offering flexibility to meet different market demands.

It features a user-friendly interface and automated controls that simplify operation and ensure consistent product quality. The extruder is also computerized, allowing for precise adjustments and monitoring during the production process.

With its robust construction, this machine ensures long-term durability and stable performance, making it suitable for both small-scale and large-scale sausage production facilities.

Choose our extruder for a cost-effective solution that delivers high-quality sausage casings every time.

Specification

Layers: 3 to 5 adjustable layers

Materials: Suitable for various plastic materials (e.g., PA, EVA, etc.)

Control System: Computerized control for precise operation

Automation Level: Automatic operation

Construction: Robust and durable machine structure

Application: Designed for sausage casing production

Power Requirements: Standard industrial power supply

Dimensions: Machine size to be provided based on model (length, width, height)

Weight: Machine weight varies by model and configuration

Vesta Home Co., Ltd. only uses renewable materials for packaging and transportation materials.

Product Advantage：

1.I t consists of multiple control systems. Extrusion system, co extrusion mold, blowing system, shaping system, rotary traction, winding system, control system.

2.Vacuum automatic feeding machine can be selected, and the raw material ratio only needs to input parameters, and the raw material control system can automatically mix.

3.The design of the extruder mold is processed according to the proportion of the structure of each layer of the product, and the scientific proportion is uniform.

4.The extrusion die head is equipped with a water cooling device

5.The shaping system consists of multiple traction clamping rollers, which can make the thickness and width of the film uniform.

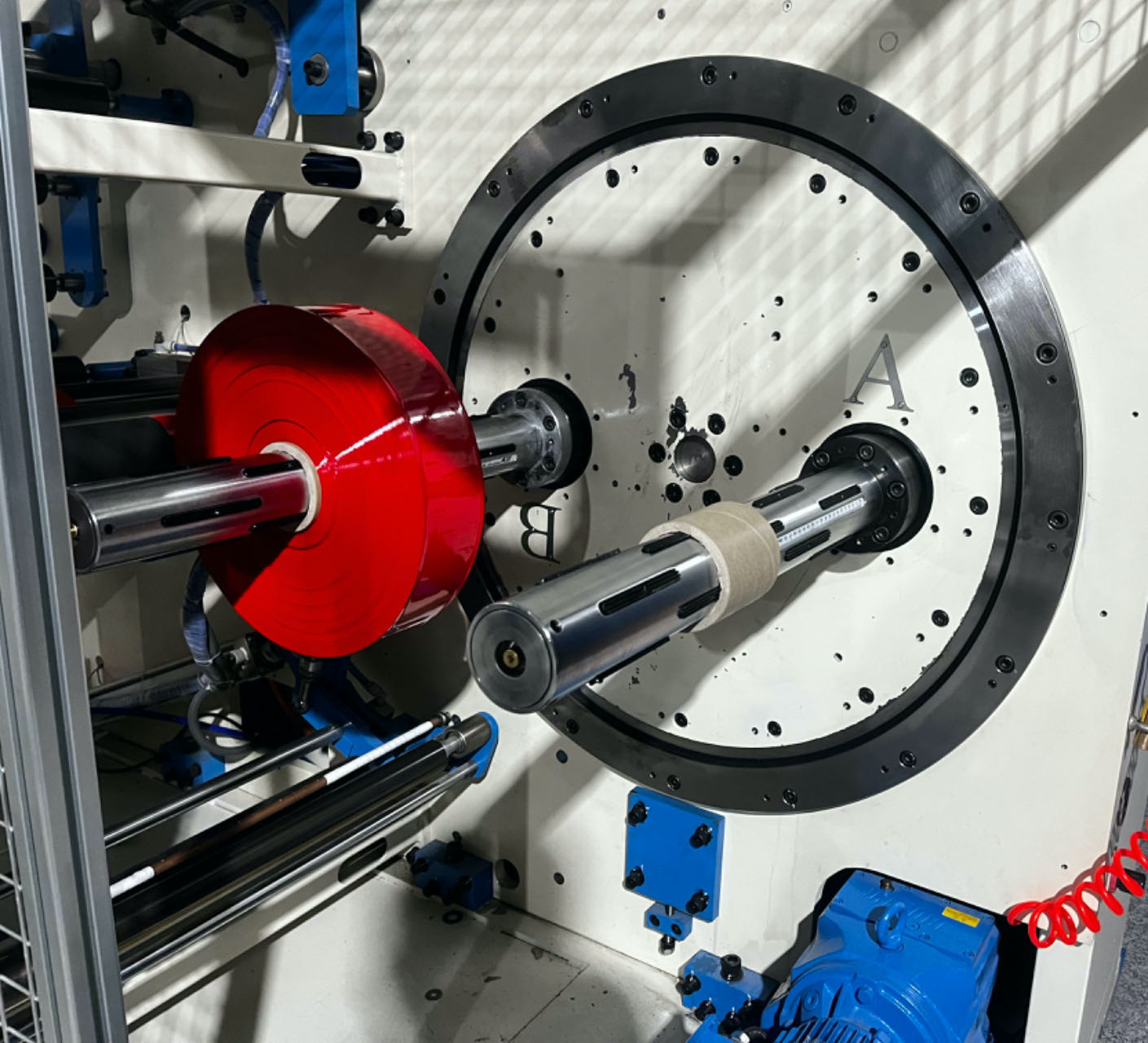

6.The winding system is equipped with a cantilever type dual station automatic roll changing and winding system, which accurately cuts and ensures the flatness of the rolled surface.

Model	Casing Production Line
Available thickness	35micron- 80micron
Production Speed	50 m/ min
Power	Voltage: 3 ×400 V, 50 Hz.N & PE wire, allowable Fluctuation: -5% to +10% Ambient temperature:15°C - 35 °C
Vacuum sizing	304# stainless steel
Sizing system	Cooling air ring
Control system	SIMENS PLC , Screen Low-voltage electrical devices
Cooling water	Pressure: 2 - 4 kg/cm2 , allowable fluctuation: +/- 0.2 kg/cm2 Temperature: 15°C - 18 °C Hardness: 3-6mmol/L.
Soft water	Pressure: 2 - 4 kg/cm2, allowable fluctuation: +/- 0.2 kg/cm2 Temperature: 15°C - 18 °C Hardness: <3mmol/L
Environmental Conditions	Workshop should be dry, dust-free, and draught-free as possible. Enough space for operation and maintain of line Permissible ambient temperature: 3°C-35°C.
