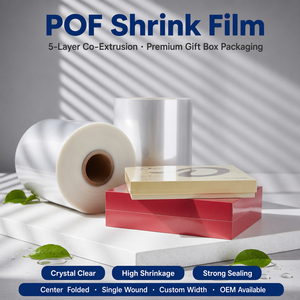

Standard POF(Polyolefin)shrink film is strong,high clarity, biaxially oriented.This film has a soft touch and will not become brittle at normal freezer teperfatures. It also exhibits corrosion free scaling with no fumes or wire build up.It is a cost, effective non-crosslinked film that works easily on most shrink packaging machines. Available thickness: 12 micron, 15 micron, 19 micron, 25 micron and 30 micron.
Product Advantage
Excellent shrinkage performance.
High heat sealing strength .
Strong resilience.
High transparency.
Wide range of applications.
It is suitable for most automatic and semi-automatic packaging machinery, and is a cost-effective product.
Technical Parameters
POLYOLEFIN SHRINK FILM TECHNICAL DATA | ||||||||||||||
TEST ITEM | UNIT | ASTM TEST | TYPICAL VALUES | |||||||||||
GAUGE | 12um | 15um | 19um | 25um | 30um | |||||||||
THICKNESS TOLEARANCE | ±10% | ±10% | ±10% | ±12% | ±12% | |||||||||
TENSILE | ||||||||||||||
Tensile Strength (MD) | N/mm² | D882 | 130 | 125 | 120 | 110 | 105 | |||||||
Tensile Strength (TD) | 125 | 120 | 115 | 105 | 100 | |||||||||
Elongation(MD) | % | 110 | 110 | 115 | 120 | 120 | ||||||||
Elongation (TD) | 105 | 105 | 110 | 115 | 115 | |||||||||
TEAR | ||||||||||||||
MD at 400gm | gf | D1922 | 10.0 | 13.5 | 16.5 | 23.0 | 27.5 | |||||||
TD at 400gm | 9.5 | 12.5 | 16.0 | 22.5 | 26.5 | |||||||||
SEAL STRENGTH | ||||||||||||||
MD\Hot Wire Seal | N/mm | F88 | 0.75 | 0.91 | 1.08 | 1.25 | 1.45 | |||||||
TD\Hot Wire Seal | 0.78 | 0.95 | 1.10 | 1.30 | 1.55 | |||||||||
COF (Film To Film) | - | |||||||||||||
Static | D1894 | 0.23 | 0.21 | 0.19 | 0.22 | 0.25 | ||||||||
Dynamic | 0.23 | 0.21 | 0.19 | 0.22 | 0.25 | |||||||||
OPTICS | ||||||||||||||
Haze | D1003 | 2.1 | 2.5 | 3.1 | 3.6 | 4.5 | ||||||||
Clarity | D1746 | 98.5 | 98.0 | 97.0 | 95.0 | 92.0 | ||||||||
Gloss @ 45Deg | D2457 | 88.0 | 87.0 | 84.0 | 82.0 | 81.0 | ||||||||
BARRIER | ||||||||||||||
Oxygen Transmission Rate | cc/㎡/day | D3985 | 11500 | 10200 | 7700 | 5400 | 4500 | |||||||
Water Vapor Transmission Rate | gm/㎡/day | F1249 | 43.8 | 36.7 | 26.7 | 22.4 | 19.8 | |||||||
SHRINKAGE PROPERTIES | MD | TD | MD | TD | ||||||||||
Free Shrinkage | 100℃ | % | D2732 | 23 | 32 | 21 | 27 | |||||||
110℃ | 37 | 45 | 33 | 44 | ||||||||||
120℃ | 59 | 64 | 57 | 61 | ||||||||||
130℃ | 67 | 68 | 65 | 67 | ||||||||||
MD | TD | MD | TD | |||||||||||
Shrink Tension | 100℃ | Mpa | D2838 | 1.85 | 2.65 | 1.90 | 2.60 | |||||||
110℃ | 2.65 | 3.50 | 2.85 | 3.65 | ||||||||||
120℃ | 2.85 | 3.65 | 2.95 | 3.60 | ||||||||||
130℃ | 2.65 | 3.20 | 2.75 | 3.05 | ||||||||||
MD\Machine Direction TD\Transverse Direction | ||||||||||||||
Note:This information represents our best judgment on the work done, but the company assumes no liability whatsoever in connection with the use of information or findings contained herein. | ||||||||||||||
Best use-by date: within 1 year of production date. |
Product Uses
POF shrink film can be used for packing any kind of products.
Standard POF(Polyolefin)shrink film is used to pack both regular and irregular shape products, such as boxes, cups, stationery, books, magazines, toys, cosmetics, fruits, vegetables, meats, breads, pastry, fast food and etc etc.
FAQ
Q: Do you accept OEM?
A: Yes, we do.
Q: What's your delivery time?
A: 15-35working days .
Q: What's your production capacity?
A: About 20 ton per day.
Q: What's your payment term?
A: We accept T/T, L/C, Western Union, Paypal, and Cash.
Q: Do you provide free sample? And how many days it will take?
A: Yes, we can provide free sample, of course it is better if you would like to pay the courier charge.
Q: How can we know whether the quality is good or not?
A: We can arrange you free sample and our certificates .
